Printable large label size Alien UHF label sticker for stock management
Printable large label size Alien UHF label sticker for stock management
Printable large label size Alien UHF label sticker

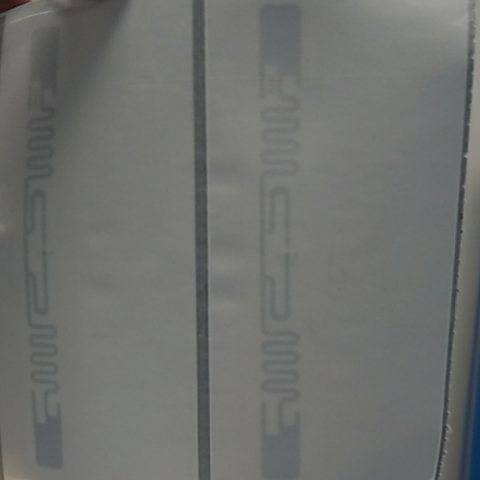

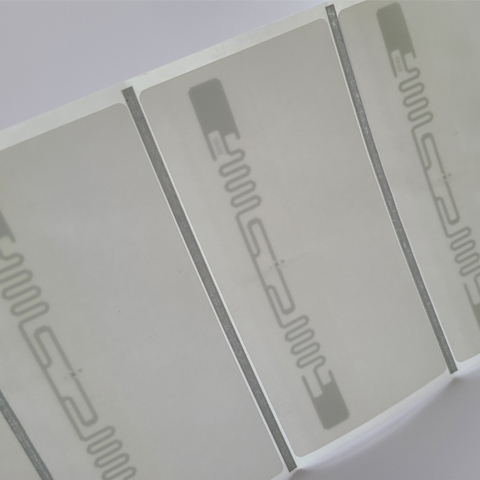

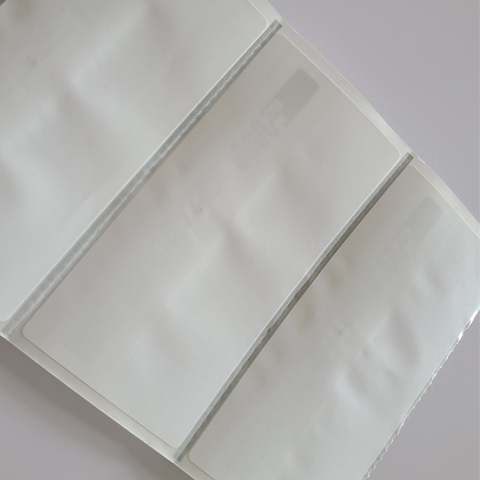

This type of antenna is usually made with a label size of 98 * 10mm, but it can also be made into a large label size of 101 * 50mm or customized according to the customer’s application field. This is to make it easier for customers to print more content by themselves.
How Does It Work?
An RFID system consists of a tag, which is made up of a microchip with an antenna, and an interrogator or reader with an antenna. The reader sends out electromagnetic waves. The tag antenna is tuned to receive these waves. A passive RFID tag draws power from field created by the reader and uses it to power the microchip’s circuits. The chip then modulates the waves that the tag sends back to the reader and the reader converts the new waves into digital data.
Product Specification:
| Chip Type | Impinj: U code 8/U code 9/Alien H4/Alien H9 |
| Frequency | 860-960MHz |
| Protocol | EPC Class 1 Gen 2, ISO 18000-6C |
| Antenna Size | 94.8*8.1mm |
| Die-Cut Size | 101*50mm or customized |
| Material | coated paper or PET |
| Packing | by roll |
| Working Temp. | -25°C to +75°C |
| Delivery Format | dry, wet, paper |
| Transponder antenna material | Aluminum |
| Qty/Reel | 1,000 /2000/5000 or customized |
| Core Size | 76mm / 3 in |
| Shelf Life | +20°C, 50% RH / 68°C, 50% RH – minimum 2 years from the date of manufacturing |
Application:
