Ntag 424 DNA TT tags use for wine tracking tamper proof NFC detection label tag
$0.23-0.8(depends on the QTY)
Ntag 424 DNA TT tags use for wine tracking tamper proof NFC detection label tag
Ntag 424 DNA TT tags use for wine tracking tamper proof NFC detection label tag

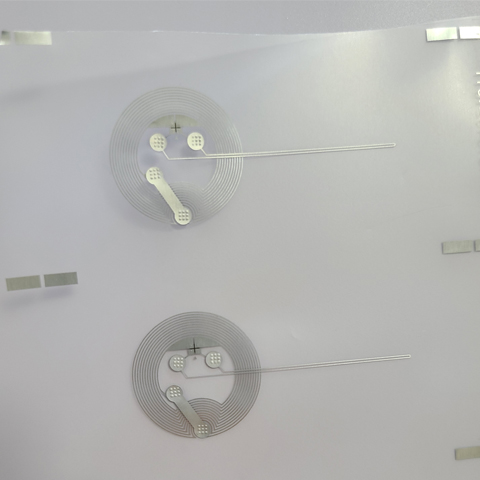

The Ntag 424 DNA TT tags feature a tag tamper-proof that detects the status of the tag tamper line. When the test line is turned on, the tag chip will permanently save the event and the tag will remain operational. And N TAG424 DNA TT provides the most advanced security and privacy protection features. Provides a new SUN authentication mechanism for each reading and protection for sensitive data with encrypted secure access.
How Does It Work?
An RFID system consists of a tag, which is made up of a microchip with an antenna, and an interrogator or reader with an antenna. The reader sends out electromagnetic waves. The tag antenna is tuned to receive these waves. A passive RFID tag draws power from the field created by the reader and uses it to power the microchip’s circuits. The chip then modulates the waves that the tag sends back to the reader and the reader converts the new waves into digital data.
Product Specification:
| Chip Type | Ntag424 DNA TT |
| Frequency | 13.56MHZ |
| Protocol | 14443A |
| Antenna Size | 21mm |
| Die-Cut Size | 49*24mm |
| Material | coated paper or PET |

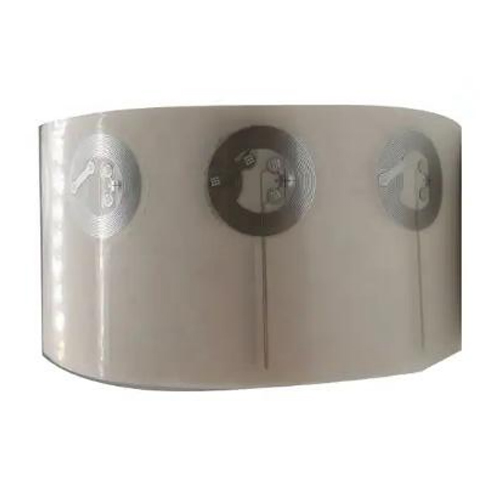

| Packing | by roll |
| Working Temp. | -40°C to +85°C / -40°F to + 185°F |
| Delivery Format | dry, wet, paper |
| Transponder antenna material | Aluminum |
| Qty/Reel | 1,000 /2000/5000 or customized |
| Core Size | 76mm / 3 in |
| Application | anti-counterfeiting traceability, secure transactions and payments, secure authentication, and access, industrial control, etc. |
Application:
